Basic Information
| Model | SENKU-IEC-3-IVc-060A | SENKU-IEC-3-IVc-080A | SENKU-IEC-3-IVc-125A | SENKU-IEC-3-IVc-150A | SENKU-IEC-3-IVc-200A |
| 60A | 80A | 125A | 150A | 200A | |
|
Rated Voltage |
1000V DC | ||||
|
Mechanical life |
no-load plug in / plug out > 10000 times |
||||
|
Case Material |
Thermoplastic, Flame retardant grade UL94-0 |
||||
|
Pins |
Cooper alloy, Sliver plated |
||||
|
Operation Temp. |
-30℃ ~ + 50℃ |
||||
Product Features
Supports operation at temperatures ranging from -30 °C to 50 °C, making it suitable for use in various countries worldwide.
Certified with CE, TUV, and RoHS, ensuring safety, reliability, and worry-free usage.
Can withstand up to 2T of pressure, offers excellent wear resistance, and has a lifespan of up to 10,000 plug-in cycles (under no-load conditions).

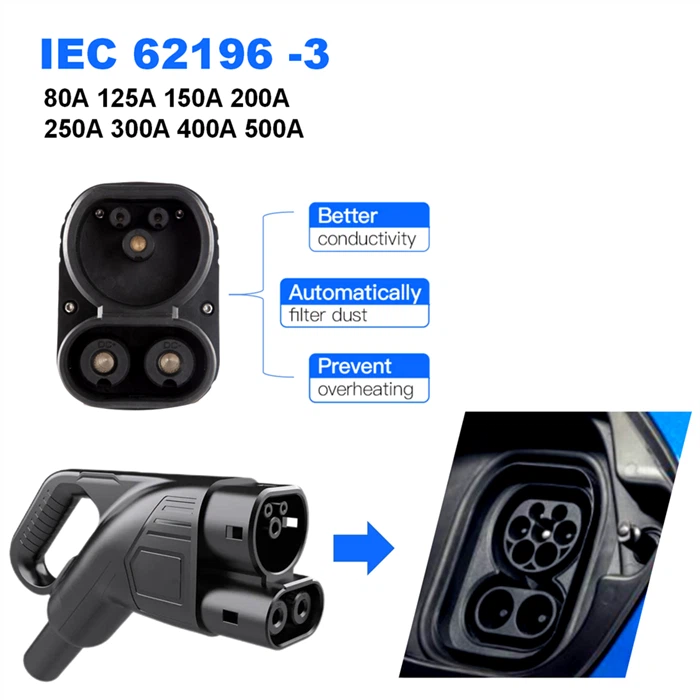

Available in 60A, 80A, 125A, 150A, and 200A CCS Type 2 electric vehicle charging plugs with IP55 waterproof and dustproof ratings, ensuring reliable charging in wind and rain.
Application

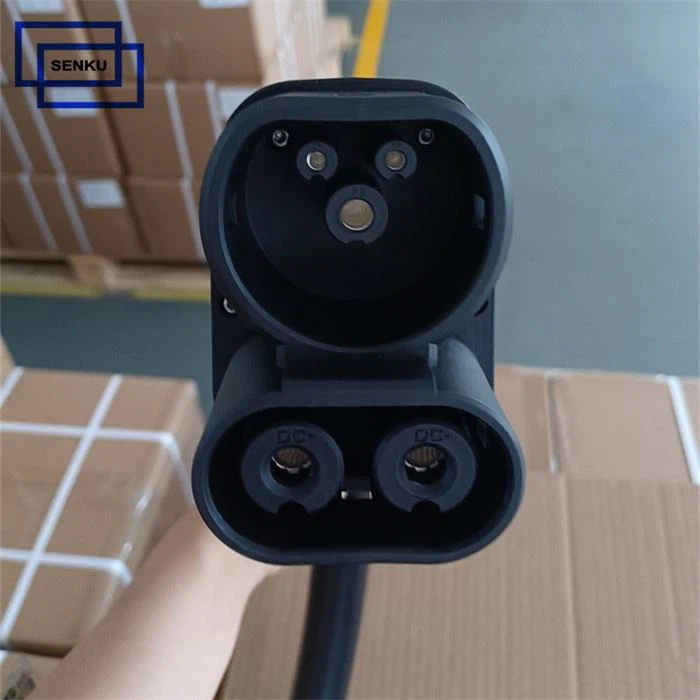

The 60A 80A 125A 150A 200A CCS Type2 electric vehicle charging plugs are specially designed for DC fast charging of electric vehicles. They are used as charging plugs installed on EV charging stations and are compatible with all CCS2 vehicle charging inlet sockets.
Production Process of the CCS Type2 Electric Vehicle Charging Plugs
The production of each EV charging plug involves different workers performing specific tasks to form a complete assembly line. This allows for quality checks at each step to ensure proper assembly and operation. Every product undergoes 100% electrical performance and conduction testing before delivery.
With rich experience, advanced equipment, and a professional technical team, SENKU MACHINERY designs, produces, and develops high-quality products for enterprises and clients. Leveraging abundant industrial resources and significant influence, SENKU MACHINERY also offers consultation services on products, technologies, markets, and projects.
Delivery test process of the CCS Type2 Electric Vehicle Charging Plugs
1.Appearance inspection
The printed content on the plug is inspected to ensure the logo, model, and other information match the customer-approved drawings. Cable colors are also verified for consistency.
2. Dimensional inspection
Checks are conducted on cable length, stripped cable length, and cable diameter to ensure compliance with drawing specifications.
3. Pull force test
The terminal tension test involves locking the cable and terminal onto a load cell and applying force to ensure the terminal and cable remain connected. For example, a 70mm² cable must withstand a tension of 2700N without detaching.
4. Temperature rise test
A continuous 200A charging current (for 200A products) is applied to observe temperature changes. The plug terminal's temperature rise must remain below 50K to confirm safe operation for continuous 200A charging.
5. Electrical performance test
Conductivity, voltage, and resistance are checked to ensure there are no missing cables or terminals. This guarantees optimal performance of the 60A 80A 125A 150A 200A CCS Type2 electric vehicle charging plugs.

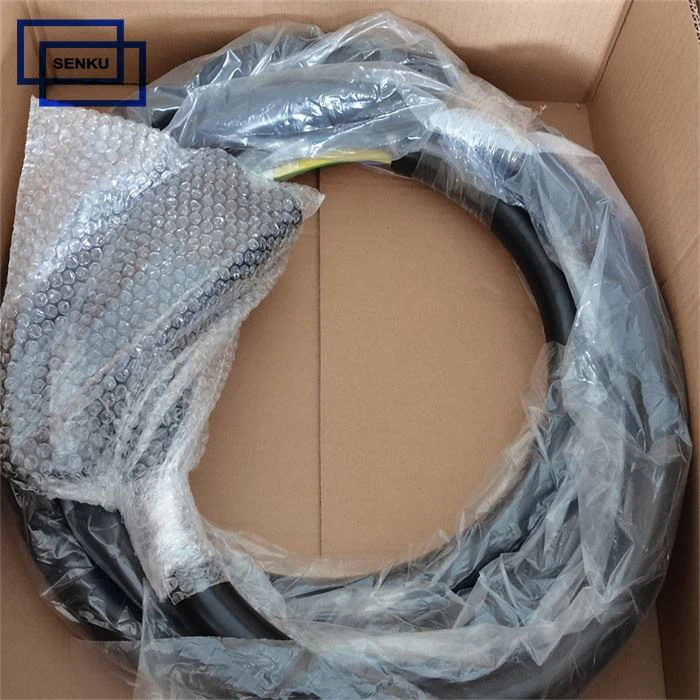

Delivery Package of the 150A CCS COMBO 2 EV Charging Plug
For 5M-long 60A 80A 125A 150A 200A CCS Type2 electric vehicle charging plugs, the default packaging includes 2 pieces per carton, with 14 cartons per pallet. The default shipping marks on the cartons and pallets read "SENKU."
Custom packaging can also be provided upon the buyer's request.
Recommand Products
The future-proof solution comes with best-in-class performance rated at 600kW/600amps continuous charging.
TUV CE Certification
Support Up to 600KW (600A) continuous charging
Temperature monitored by PT1000 sensors
Customised technical solutions possible
