Basic Information
|
Product Name |

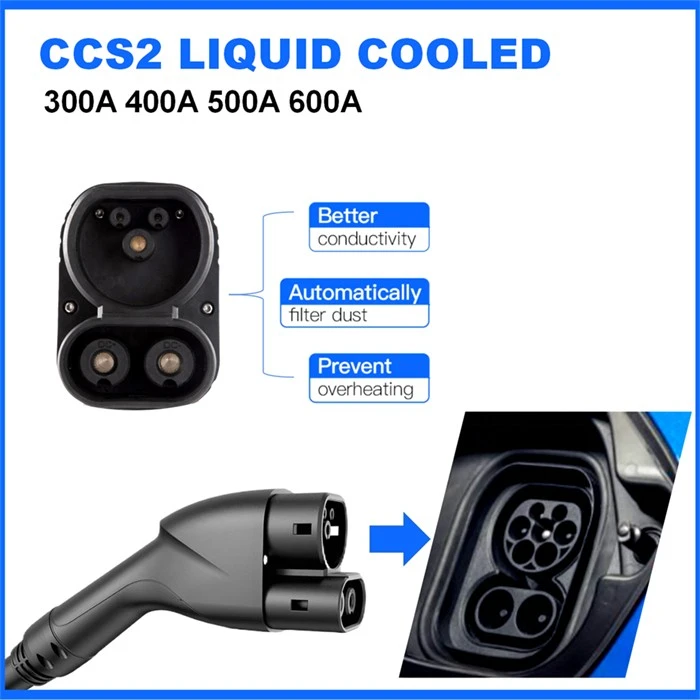

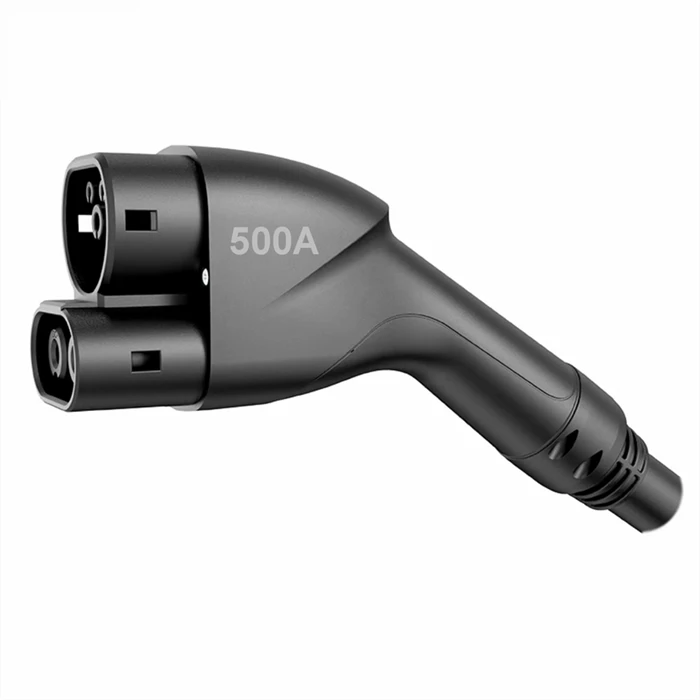

Liquid Cooled CCS 500A 600A EV Charging Plug |
| Model No. | SENKU-IEC-3-IVc-500A |
|
Rated Current |
500A / 600A optional |
|
Rated Voltage |
1000V DC |
| Cooling Method | Liquid Cooling |
| Manufacturing Technique |
Ultrasonic welding |
|
Terminal |
Copper alloy,silver plating |
|
Flame retardant grade |
UL94 V-0 |
|
Coupled Force |
45N＜F＜100N |
|
Operating Temperature |
-30℃-﹢50℃ |
Product Features
TUV CE Certificated
The product has obtained the TUV CE certificate, complying with IEC 62196-1 and IEC 62196-3 standards.
Advanced Welding Technology
Ultrasonic welding technology is employed between the charging cable and the copper terminal of the charging plug, ensuring a firm and reliable connection. This prevents the cable from detaching or being damaged due to vibration or other external forces during charging, maintaining efficiency and safety.
High quality Cooling Cable
The cooling cable of this Liquid Cooled CCS 500A EV Charging Plug offers excellent electrical conductivity. It withstands coolant flow while maintaining sufficient flexibility for convenient operation.
High Waterproof Rating
In addition to the advantages of fast charging and heat dissipation, Senku's Liquid Cooled CCS 500A 600A EV Charging Plug uses high-quality materials and rigorous production processes to ensure product reliability and stability. Its IP55 waterproof rating allows stable performance in harsh environments, providing users with peace of mind.
Quick Change Terminal Technology
The internal and external structures of this Liquid Cooled CCS EV Charging Plug are stable and safe, ensuring efficient high-power transmission. This EV charging gun supports quick change terminal technology, which simplifies maintenance and reduces operational costs.
Expand knowledge
What is the Working Principle of Liquid Cooled EV Charging Plug ?
The Liquid Cooled CCS 500A EV Charging Plug operates using an electronic pump that circulates coolant between the liquid-cooled cable, the oil tank storing the coolant, and the radiator. This process maintains low temperature characteristics.
Types of Liquid Mooling Medium
The Liquid Cooled CCS 500A EV Charging Plug is categorized into two cooling modes based on the coolant:
Water-Cooled Charging Guns: Known for strong short-term power output.
Oil-Cooled Charging Guns: Offer excellent current-carrying capacity and enhanced safety.
Why Liquid Cooled EV Charging Plug is Important ?
With the rapid growth of the new energy vehicle industry, the demand for faster charging is increasing. High-power batteries improve charging speed on the vehicle side, but matching charging equipment is essential for achieving these speeds. Supercharging technology has become a vital solution to meet this need.
As a key connection between supercharging stations and electric vehicles, the liquid-cooled EV Charging Plug converts charging current into electrical energy and delivers it to the vehicle battery. This technology helps alleviate users' charging concerns.
More details about this Liquid Cooled CCS 500A 600A EV Charging Plug, please contact our sale team, Thank you!
Related Products
Liquid Cooling EV Charging Power Module
The full liquid cooling technology significantly enhances heat dissipation efficiency. The module is characterized by high protection levels, strong stability, high safety, and noiseless operation.
Liquid Cooling Pump for Single Charging Plug
This product's core technology provides a suitable coolant temperature and flow rate for CCS under all operating conditions, ensuring that the temperature rise of CCS during charging does not exceed 50K (ΔTmax = 50K).
Liquid Cooling Pump for Dual Charging Plug
The principle is similar to the single-plug pump, but this module operates at higher power to support two charging guns simultaneously.
