| Specification | Product | 15KW 22KW V2G Bidirectional EV Charger | |
| Model | Rated Power |
15KW |
22KW |
| Charging Mode | AC input voltage | 260 Vac~530 Vac, rated 380 Vac; 45Hz~65Hz | 260 Vac~530 Vac, rated 380 Vac; 45Hz~65Hz |
| AC input Current | 0 ~ 28A | 0 ~ 43A | |
| Power factor | ≥0.99 (full load output) | ≥0.99 (full load output) | |
| DC output voltage | 150V dc-750V dc | 150Vdc - 1000Vdc | |
| DC output current | 0 ~ 50A | 0 ~ 73.3A | |
| Output efficiency | >95% | >95% | |
| Discharging Mode | DC input voltage | 300Vdc-750Vdc; 15kW constant power output | 300Vdc-1000Vdc; 22kW constant power output |
| DC input current | 50A Maximum | 73.3A Maximum | |
| AC output voltage | 15kW constant power output at 260Vac~485Vac; 320Vac~485Vac | 22kW constant power output at 260Vac~530Vac; 320Vac~530Vac | |
| AC output current | 15KW / 20A | 22kW / 33.3A | |
| AC frequency | 50Hz/60Hz | 50Hz/60Hz | |
| Output power factor | Can be set, setting range is 0.8~1, -0.8~-1 | Can be set, setting range is 0.8~1, -0.8~-1 | |
| Output efficiency | >95% | >95% | |
| Others | Protection | Input over/under voltage protection, Output overvoltage protection, Overcurrent and short circuit protection, Over temperature protection, Emergency stop protection, SPD protection etc... | |
| Ingress Protection | IP54 || IK10 | ||
| Charging cable | 4m / 5m Or Customized | ||
|
Output Connectors |
CS2 / CCS1 /CHADEMO / GBT / NACS optional |
||
Basic introduction

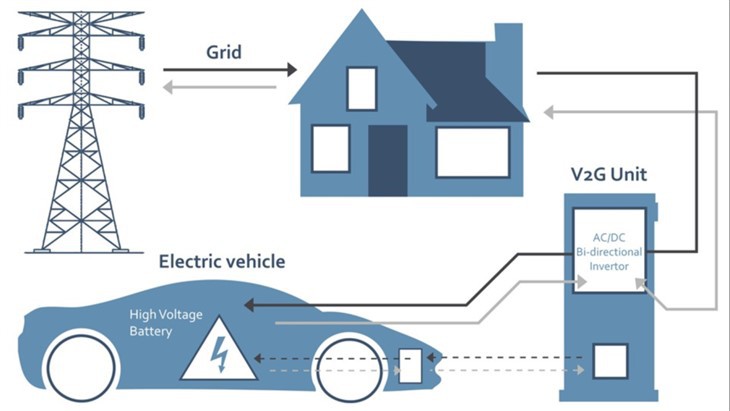

V2G charging station is the abbreviation for Vehicle to Grid. The bidirectional AC/DC system utilizes the unique energy storage function of electric vehicles and the bidirectional interaction with the power grid. It can not only transmit electrical energy to electric vehicles (EVs), but also obtain electrical energy from vehicles and transmit it back to the power grid.
Product Features
Bidirectional transmission of electrical energy: V2G technology allows for bidirectional flow of electrical energy between electric vehicles and the power system. When needed by the grid, the electrical energy in the car battery can be returned to the grid, providing support.
This 15KW 22KW V2G bidirectional EV charger equipped with comprehensive monitoring functions such as real-time billing, fault detection, fault recording, charging recording, emergency stop, DC insulation detection, and comprehensive safety protection functions (such as battery reverse connection, overcurrent protection, short circuit protection, DC output overvoltage and undervoltage protection, etc.)

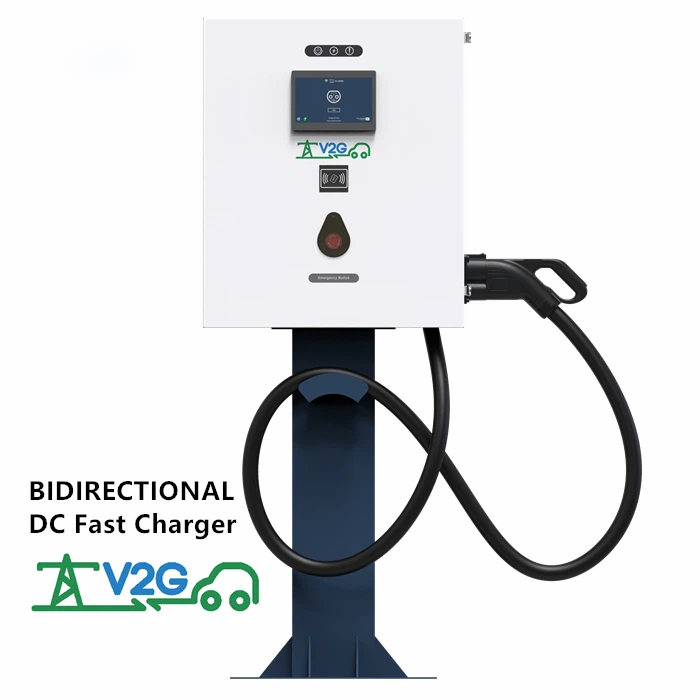

There are two installation methods to choose from: this 15KW 22KW V2G bidirectional EV charger supports wall mounted installation on the wall, or can be installed on the ground through columns;charger dimension：
630mm x 260mm x 750mm wall mounted version
630mm x 260mm x 1600mm with installation column
Expand knowledge
What is V2G And How Is It Different Drom Other V2X?
V2G means that electric vehicles with bidirectional charging capability can serve as storage units for grid electricity and also transmit electricity back to the grid. In short, after the car is connected to the charging unit, it can be used as a mobile power source to provide electricity to the grid during peak hours, or it can be sold to balance sustainable energy demand.
This is different from V2H (vehicle to home) and V2L (vehicle to load), which focus on powering homes and tools, electric bicycles, and appliances, respectively. Both directly provide backup power for households, rather than feeding excess electricity back into the grid. Regarding V2L, it is a relatively simple technology that has already been implemented and applied.
Although there are many "vehicle to X" technologies, V2G stands out due to its ability to provide clean energy on a large scale.
What Are Advantages of V2G Charging?
In addition to helping meet the growing demand for electricity (while also reducing our dependence on non renewable energy), V2G technology has several powerful advantages.
For public utilities, V2G provides an economical way to meet the soaring energy demand while also better utilizing renewable energy. This means that citizens can access cheaper and more reliable electricity services.
More importantly, V2G can also subsidize the cost of owning electric vehicles. By selling electricity back to the grid, electric vehicle owners can not only promote the transformation of green energy infrastructure, but also use their cars to generate revenue.
