What is Mode 2 Portable Electric Charger?
Mode 2 portable 16A Type 2 Electrical Chargers are devices for charging electric vehicles. These chargers are suitable for overnight charging after short daily trips, offering a convenient and flexible solution.
That means you don't need to pay expensive fees to hire an electrician to help install this charger, because its design is small and lightweight, the size of the charger box is about the size of a palm, and the weight of the entire charger is only about 2 kilograms;
|
EV Charging Mode |
Mode2 |
Input Voltage |
240V AC |
|
Total Length |
5M or Customized |
Charging Current |
6A 8A 10A 13A 16A Adjustable |
|
Charger Box IP rating |
IP66 |
Plug type (to vehicle socket) |
Type2 |
|
Operating temperature |
-25℃ to + 55℃ |
Plug type (to power socket) |
Schuko or Customized |
Type 2 Portable Electric Charger Operatinon Instruction
Functions of Charger BOX
Current Setting
In standby mode, short press the button for 0.1S to 1 second to select the current, choose between 6A and 16A, long press to confirm, and it will automatically return to the main interface if there is no operation for 10 seconds.
Appointment Setting
In standby state, short press the button for 0.1s to 0.5s to enter the Appointment Setting page. Charging time setting, and Scheduled charging. Single-button selection. Press and hold for 1.5s to enter. Single click is 1H and can be adjusted from 1 to 10H. After pressing and holding to confirm, The main interface and time interface switch every 10s.
Charger Box Screen Information
Clear Power Management:
The screen real-time displays the internal temperature of the product (e.g., 28°C) to ensure the device operates at an optimal temperature; CP voltage (12.1V) and device fault codes (e.g., E01) promptly feedback device anomalies to guarantee safe use.
Real-time voltage (221V), current (15.3A), and power (3.3kW) are clearly displayed, allowing users to understand charging efficiency at any time; the current can be set from 6A to 16A to adapt to various charging needs and ensure stable output.
Real-Time Status Monitoring at a Glance
This Type 2 Portable Electric Charger is specially designed for modern car owners, integrating intelligent monitoring and convenient operation. It intuitively displays key information through a screen, putting the charging process fully under your control.
Scheduled Charging Function
Supports charging time setup, allowing users to preset charging duration according to their needs; the scheduled charging function (alarm clock icon) facilitates off-peak power usage and cost savings. (e.g., 00:03:00 means charging is schedule to start charge in 3hours later)
Portable and Easy Charging
01
Wide application of Current
Support Current Adjust Function: 6A 8A 10A 13A 16A switch.
02

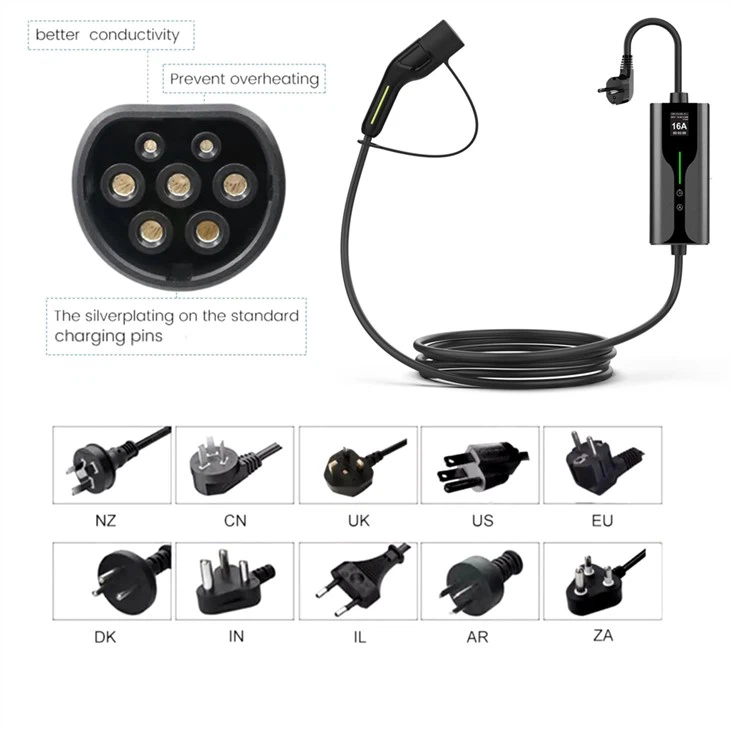

Production Follow local Stsandards
Household Power Plug: Can be customized according to user country standard, such as schuko plug, UK 3pins plug, India Plug...
03
High-Quality Customized Services
Support Brand customized service provided.
04
CE Certification
The 3.5KW Type 2 Portable Electric Charger Meet IEC62196-2, EN62752, CE Certification.
Portable Electric Charger accessories
You can use this 16A Type 2 Portable Electric Charger anywhere with a home power socket, just as convenient as charging a phone; You can also pair it with a handbag and store the charger in the trunk of your car, allowing it to charge your car anytime and anywhere in a timely manner. Alternatively, if you don't want to carry this charger with you, you can place it anywhere in your garage as it takes up almost no space; Alternatively, you can buy a hook to easily fix the charging device to the wall. We can provide all the accessories mentioned above.
Company Information
With over 12 years of industry experience, Senku have extensive experience in producing products such as electric vehicle connectors and electric vehicle charging stations. Our factory is equipped with advanced machinery, and we maintain strict quality control at every stage of production.
Our team is composed of skilled engineers and technicians who are experts in their respective fields. This professional knowledge helps us create products that are not only high-performance, but also innovative and forward-looking.
The factory have passed ISO 9001 and IATF16949, and products got CE, UL, FCC, TR25, ELT, KC certifications, so you can trust our products quality.
We are committed to sustainable development, using energy-saving processes and environmentally friendly materials as much as possible.
