Basic Information

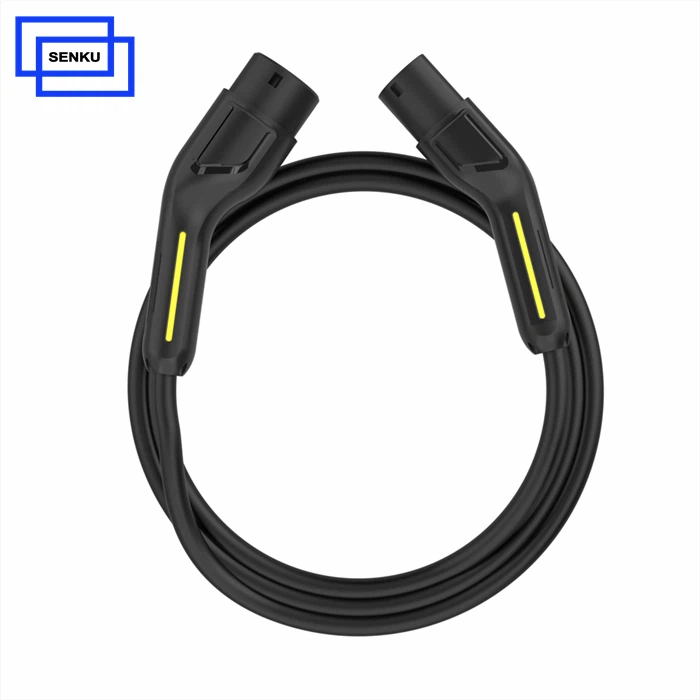

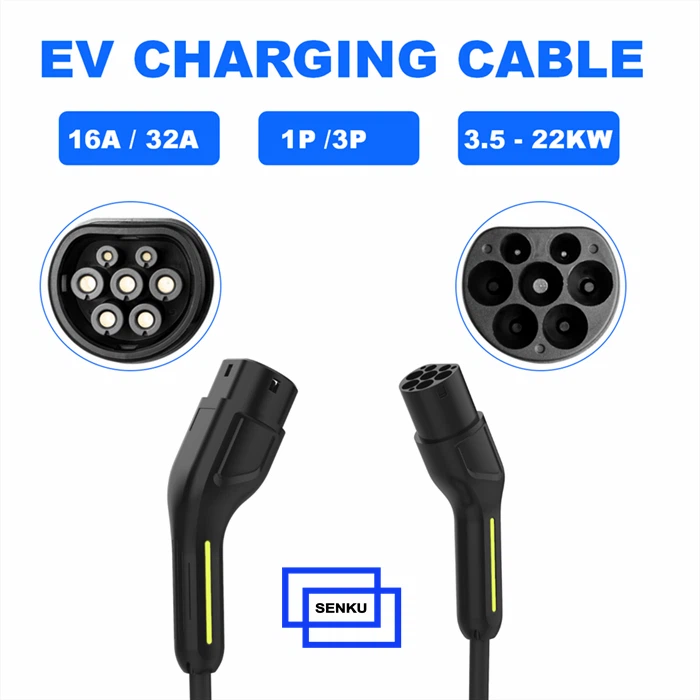

The Mode3 16A Type 2 Phev Charging Cable is a movable cable used to charge electric vehicles at charging stations without tethered wires; It has two charging plugs, one is a male type 2 plug and another one is a female type 2 charging gun, which are connected by a cable; The length of the cable can be customized according to the user's needs, and popular lengths are generally 5M, 7M, and 10M;
Technical Specification
|
Product |
16A Type 2 Phev Charging Cable |
IP Rating |
IP55 |
|
Comply Standards |
IEC62196-1 / IEC62196-2ROHS, REACH |
Certifications |
TUV CE, UKCA |
|
Current / Voltage |
16A 250V AC 3.5KW |
Flame Retardant Grade |
UL94-0 |
|
Cable Specification |
16A 250V AC 3.5KW: 3*2.5 mm² + 2*0.5 mm² (TPU / TPE) 16A 480V AC 11KW: 5*2.5 mm² + 2*0.5 mm² (TPU / TPE) |
Mechanical Service Life |
More than 10,000 times |
|
32A 250V AC 7.4KW: 3*6 mm² + 2*0.5 mm² (TPU / TPE) 32A 480V AC 22KW: 5*6 mm² + 2*0.5 mm² (TPU / TPE) |
|||
|
5M or Customized |
Application
Most European electric cars including the BMW, Audi, Porsche, Volvo, Porsche and Mercedes as well as Tesla use a Type 2 in car connection.
This 16A Type 2 Phev Charging Cable, 16A single phase ev charger allows up to 3.5kw charging power. The EV cable is made of high-quality copper and provides good conductivity for faster charging. It can use to charge a electric vehicle on any public or home Type 2 (IEC 62196-2) socket charging stations.
Senku Machinery focus on the research and production of electric vehicle charging equipment. Our main products include electric vehicle charging connectors (charging plugs, charging sockets, and adapters), electric vehicle charging stations (AC chargers and DC charging stations), and accessories.
Our EV charging connectors has a sturdy and durable structure that can adapt to various environmental conditions. It has obtained TUV and UL certificates to ensure the safety of the charging process.
