J1772 32A 250V AC Type 1 To GBT EV Charging Adapter

J1772 32A 250V AC Type 1 to GBT EV Charging Adapter

The EV charging adaptor has a nice appearance, a hand-held ergonomic design and is easy to plug.

The Type 1 to GBT EV Charging Adapter standard cable length is 0.5M, the cable length also can produce according to customer requests.

This EV charging adaptors compatible with most Level 2 home / public charging stations.

Which situation is this Type 1 to GBT EV Charging Adaptors suitable for?

If you have a charging point with a fixed cable with a type 1 plug, you cannot normally charge a GB/T (China Guobiao standard) electric vehicle. With this type 1 to GB/T you can convert the type 1 plug of fixed cable on the charging point side to a GB/T plug.

This Type 1 to GBT EV Charging Adaptors has Two Sides: one side is type 1 socket connected to EV charging station, another side is GB/T plug connected to the GBT Electric car.

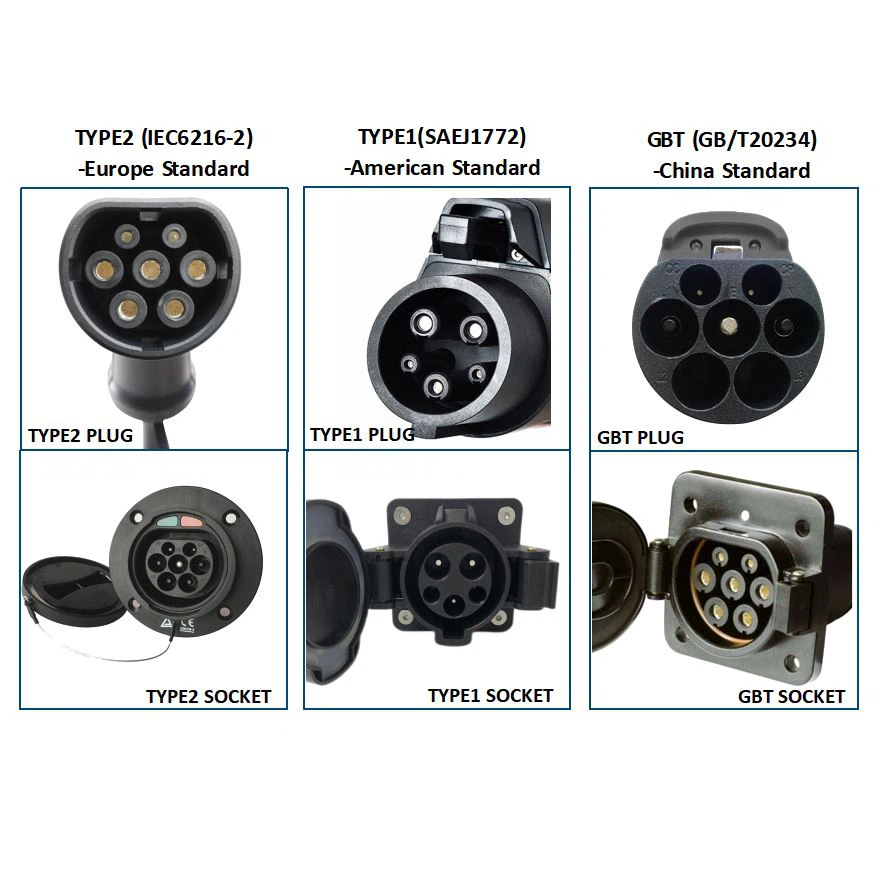

EV AC charging connectors ( plug and socket):

In generally, there are mainly three types of AC EV charging connectors in the world.

1)The IEC 62196 Type 2 connector is used for charging electric cars, mainly within Europe. The connector is

circular in shape, with a flattened top edge.

2)SAE J1772 (IEC 62196 Type 1), SAE Electric Vehicle Conductive Charge Couple, also known as a J plug,

is a North American standard for electrical connectors for electric vehicles maintained by the SAE

International.

3)The Guobiao standard GB/T 20234 for AC / DC charging within China. And now it is also easy to find in the

Asia market, especially the countries near China.

Start charging with Type 1 to GBT EV Charging Adapter:

1)Plug in the Type 2 socket of the adapter to the type 2 charging station

2)Plug in the GBT plug of the adapter to the electric vehicle port

Stop charging of Type 1 to GBT EV Charging Adapter:

1)Stop charging on charging station

2)Pull out the GBT plug of the adapter from the electric vehicle port

3)Pull out the Type 1 socket of the adapter from the charging station
