Product Features

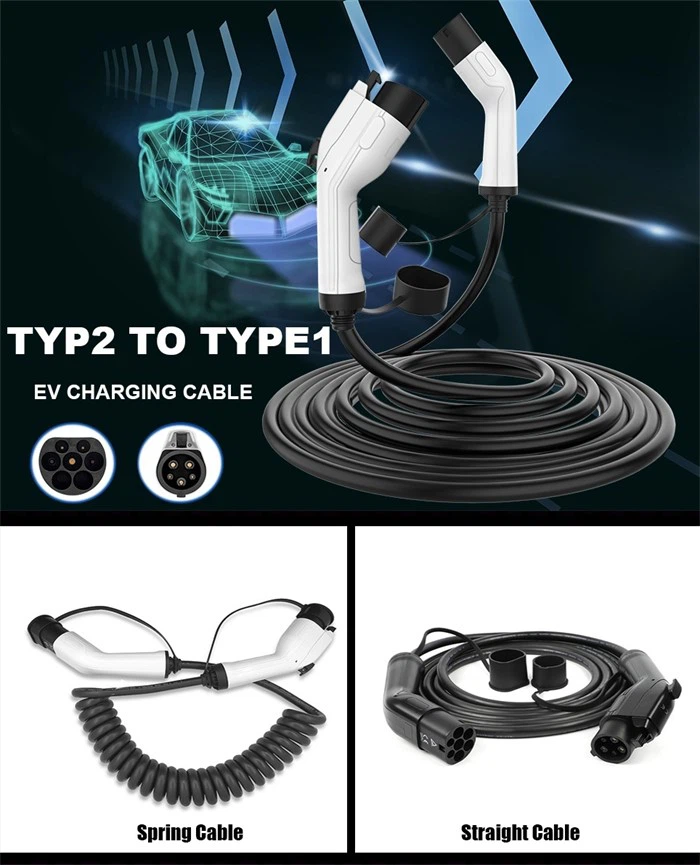

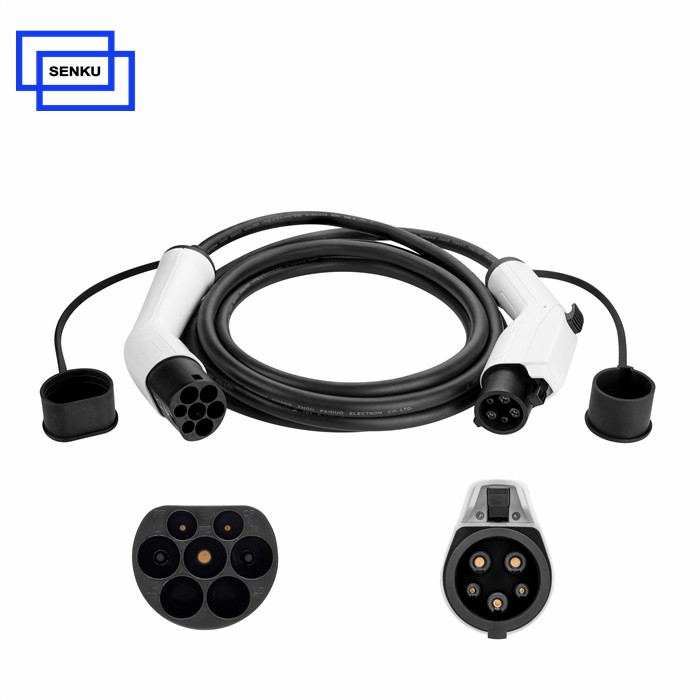

Type 2 to Type 1 EV Charging Cable 16A:
• Angled horizontal bending design, in line with the habit of manual force which allows for convenient plugging & unplugging.
• Silver plating on the pins ensures greater conductivity, charging efficiency and reduces heat generation.
• Cable with highly resistant to bending, protecting the internal wiring harness to function normally under repeated bending conditions.
• EV charging cable 16A Up to 3.5KW and EV charging cable 32A up to 7.4KW fast charging.
• Type 2 to Type 1 EV Charging Cable length customized, give possibility to reach charging station at any distance.
• IP55 water-proof and dust-proof for outdoor and indoor use.
• OEM or ODM supported

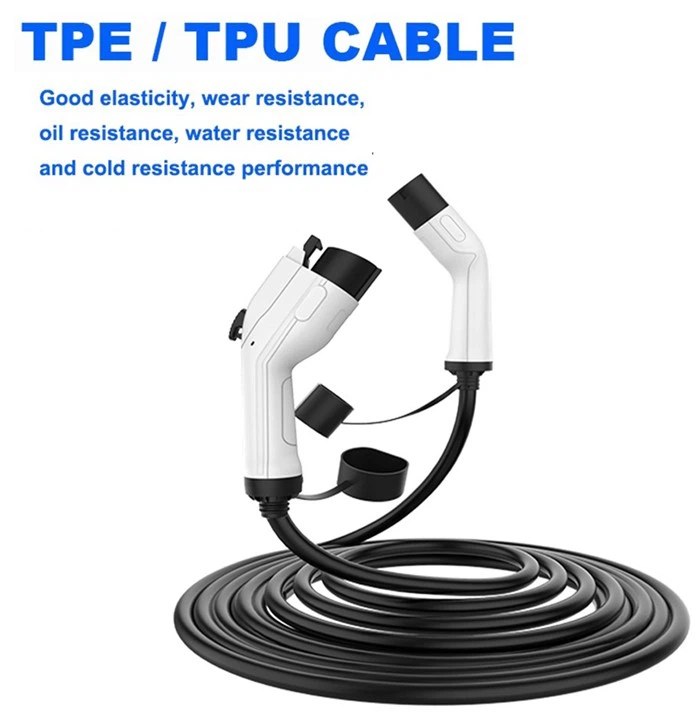

What is the difference of TPU cable and TPE cable?
A: TPE = Thermoplastic Elastomer; TPU = Thermoplastic polyurethanes
TPE ev charging cable has better soft hand feeling; It is characterized by high flexibility and good temperature resistance; TPE cable price is lower price than TPU.
TPU ev charging cable has rough hand feeling and and poor smoothness; It is characterized by high strength and good wear resistance, and Outstanding cold resistance, oil resistance and water resistance.
What customized service can be provided?
A: 1. Brand on plug supported.
2. Cable color Blue, Green, Black or Orange for option, or produce according to provided RAL color.
3. Type 2 to Type 1 EV Charging Cable length do according to customer demands.
4. Design or Develop based on customer requests or drawing or sample.
Hot Tags: type 2 to type 1 ev charging cable 16a, type 2 to type 1 ev charging cable 16a suppliers, manufacturers, factory, fast charging ev battery, electric power charging station, level 2 charger j1772, 80A ev charging socket, V2V ev charger rectifier, ccs charging cable
Technical Specification
|
Electric Performance. |
||
|
Rated current |
Ev charging cable 16A or 32A option (type 2 to type 1) |
|
|
Operation voltage |
250VAC |
|
|
Mechanical life |
no-load plug in / plug out > 10000 times |
|
|
Coupled insertion force |
<100N |
|
|
Impact of external force |
can afford 1m drop test and 2T vehicle run over pressure |
|
|
Case Material |
Thermoplastic, Flame retardant grade UL94-0 |
|
|
Pin |
Cooper alloy, Sliver plated |
|
|
Operation Temp. |
-30℃ ~ + 50℃ |
|
|
IP protection class |
IP 55 ( working condition) |
|
|
Model |
Cable Specific |
Cable Length |
|
16A / 250VAC |
3*2.5 mm² + 2*0.5 mm² |
5M or Customized |
|
32A / 250VAC |
3*6 mm² + 2*0.5 mm² |
|
