| Type 2 7KW 11KW 22KW Electric Car Recharge Stations | |||
| Product Series | HOME-Basic | HOME-Upgrade | Commercial |
| Charging Interface | IEC 62196-2 TYPE2 , SAE J1772 TYPE 1, GBT 20234 | ||
| AC input Voltage |
220V AC ± 20%, 1-phase (Type 1 Charger can work at voltage 120VA ± 20% ) 380V AC ± 20% , 3-phase |
||
| Output Voltage |
220V AC ± 20%, 1-phase (Type 1 Charger can work at voltage 120VA ± 20% ) 380V AC ± 20% , 3-phase |
||
| Rated Output Current | 16A / 32A | 16A / 32A | 16A / 32A |
| Rated Power | 7kW/11KW/22KW | 7kW/11KW/22KW | 7kW/11KW/22KW |
| Working Frequency | 45 /65 Hz | 45 /65 Hz | 45 /65 Hz |
| Networking Method | N/A | WIFI | 4G/WIFI/LAN |
| Control mode | Plug and Charge | APP control / RFID card | OCPP1.6 J (QR code / RFID) |
| IP grade | ≥ IP55 | ||
| Working Temperature | -40℃～ +60℃ | ||
| Working Humidity | 5%-95% Non-condensing | ||
| Special Protection | UV resistance | ||
| Working altitude | ≤ 2000m | ||
| Application Scenario | Outdoor / Indoor parking and charging | ||
| Dimension | 238mm x 95mm x 348mm | ||

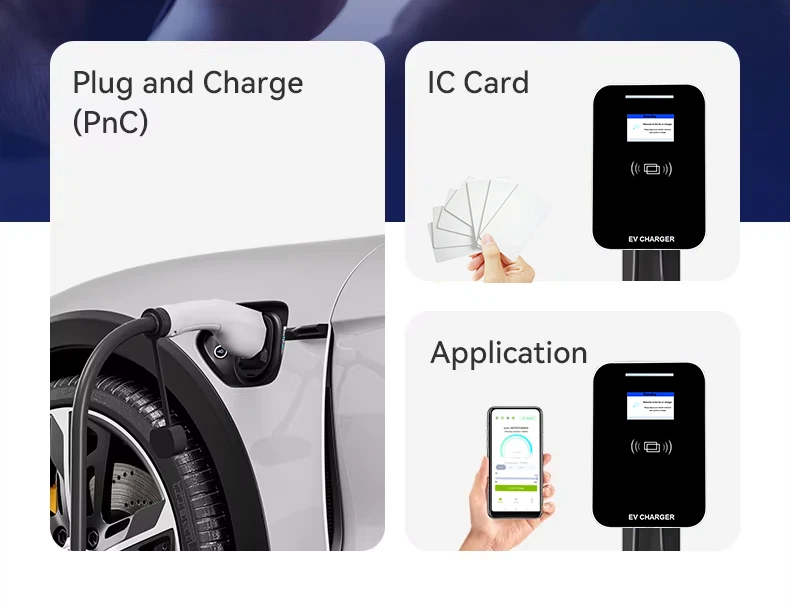

Electric car recharge station Control Method
-
Plug-and-Charging
(Default function)
The Plug-and-Charging feature enables fully automatic charging. Once the electric car recharge station is connected to your vehicle, it initiates charging immediately. The system smartly detects when the battery reaches full capacity and automatically stops charging, eliminating the need for manual intervention.
-
RFID Card Authentication (Optional function)
For enhanced security, an optional RFID function ensures only authorized users can access the charger, preventing unauthorized use of your charging stations.
-

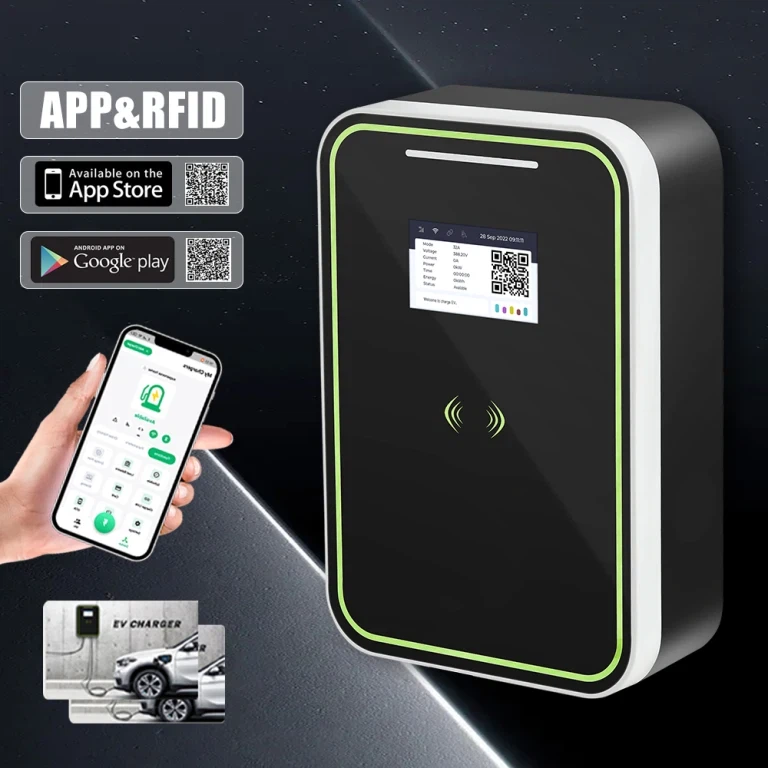

Mobile App Management
(Optional function)
Take full control of your charging station via a dedicated mobile app. Remotely start or stop charging sessions, adjust the output current, and monitor real-time charging data, including energy usage and session history. If equipped with a CT Kit, the app also allows you to manage dynamic load balancing or prioritize solar-powered charging for optimized energy efficiency.

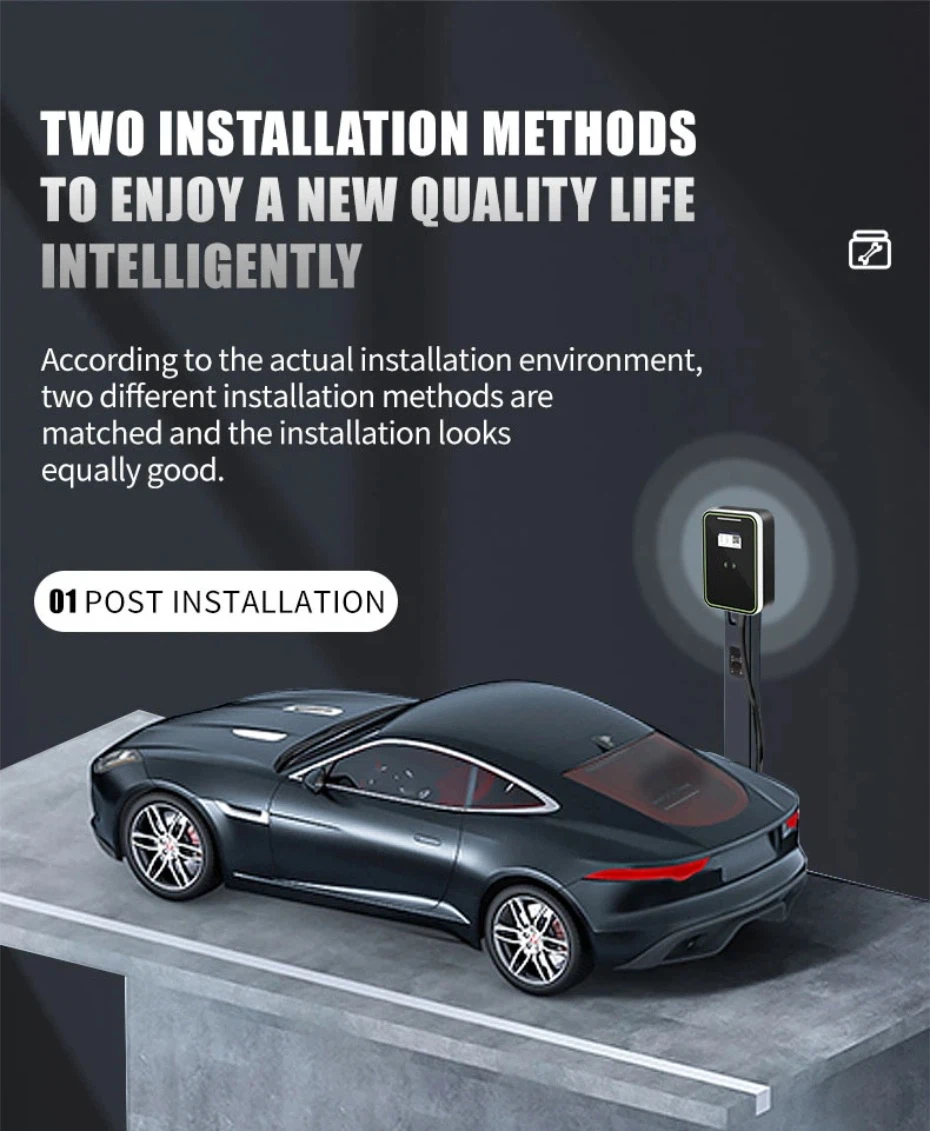

Two Installation Method
If you have any questions or uncertainties about the installation process, our dedicated support team is always on hand to assist you. Feel free to contact us at any time, and we'll ensure you have the guidance needed for a smooth and successful setup.
mETHOD 1

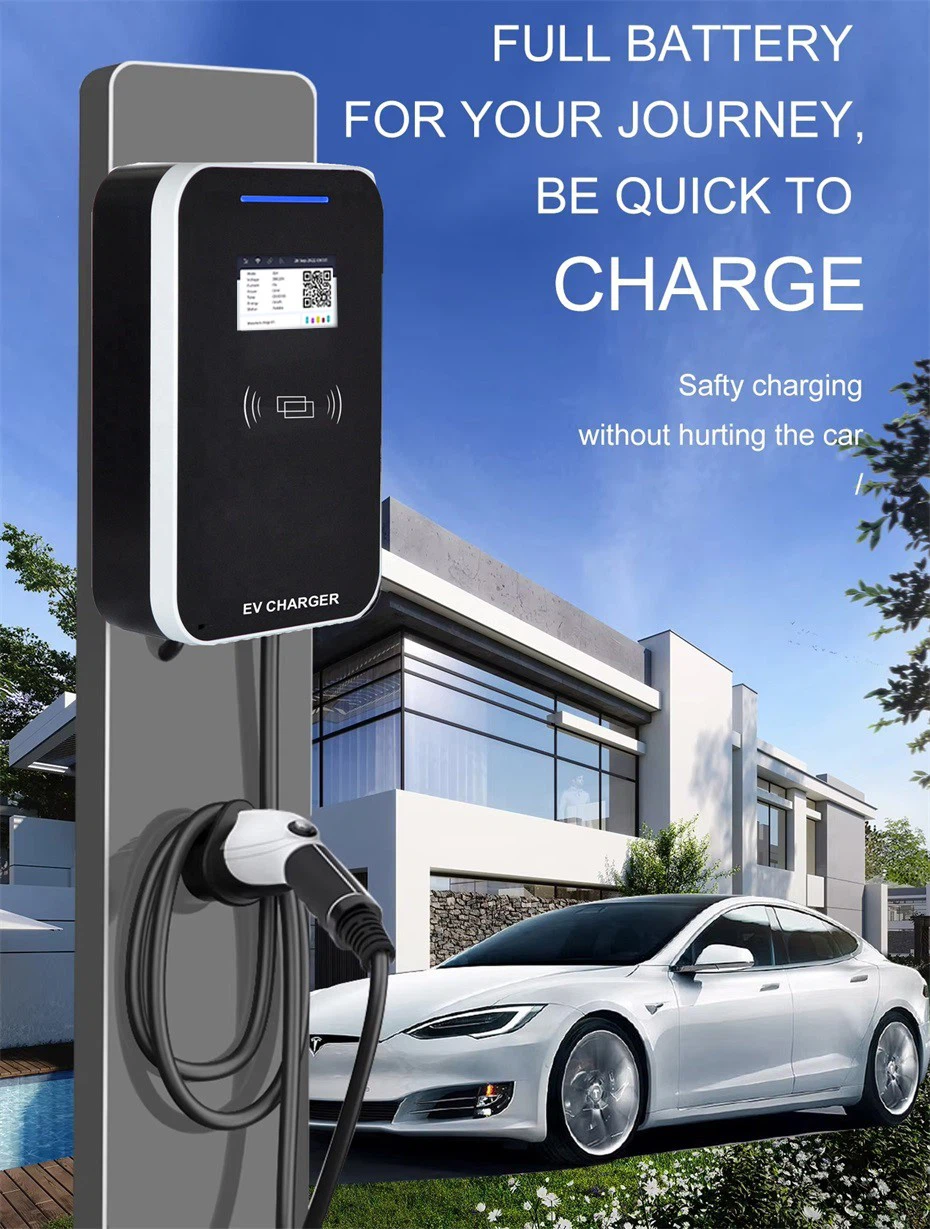

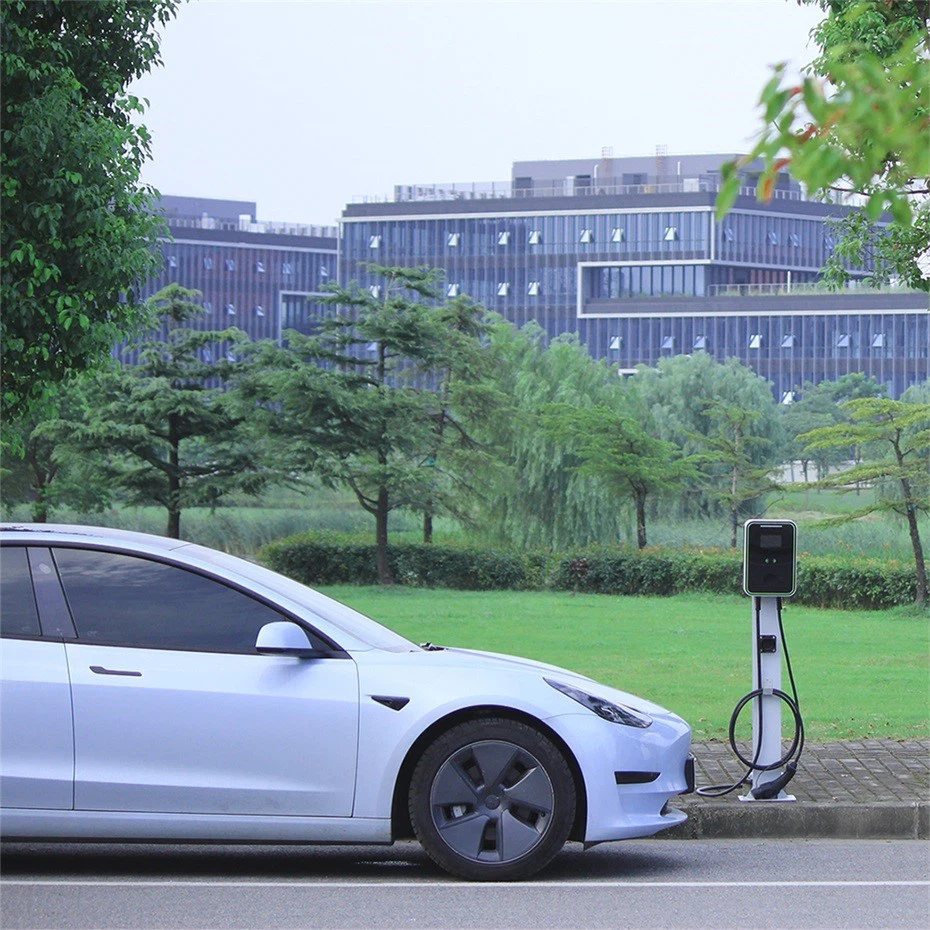

Pillar Installation
The second installation approach utilizes a standalone pillar, ideal for environments without walls or when wall mounting isn't preferred. This durable pillar serves as a stable base for the charging station and can be positioned in various settings-whether in a driveway, parking lot, or other outdoor area-offering a practical and adaptable solution for your charging needs.
mETHOD 2

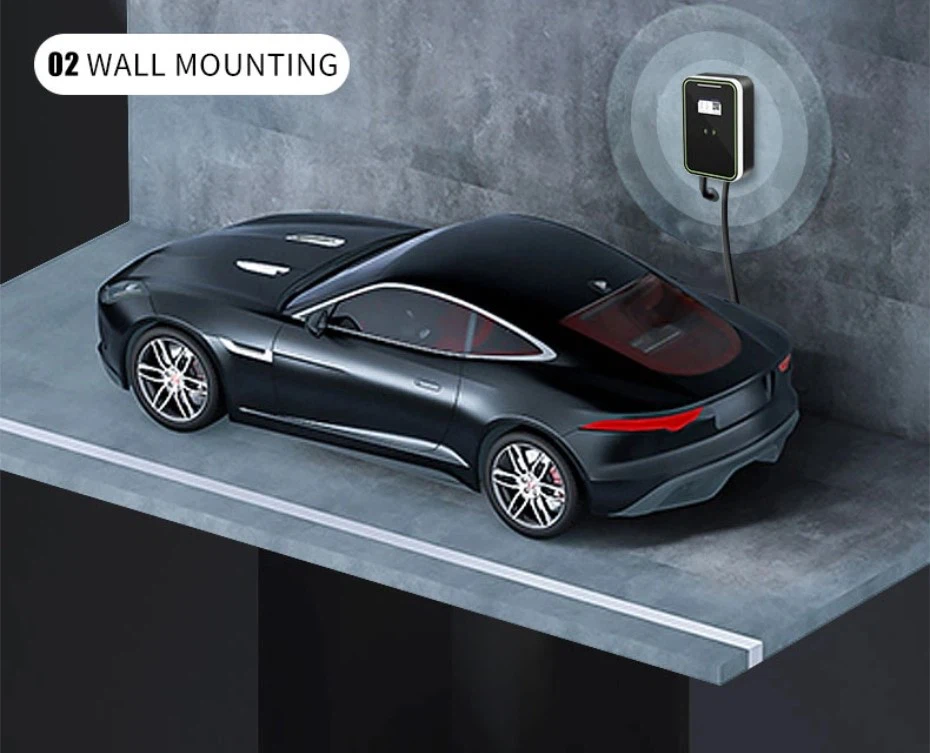

Wall-Mounted Installation
The first way involves mounting the charging station directly on a wall.
Charger Highlights - Efficient Home Charging Solution
Fast and Reliable Home Charging: The Type 2 11KW 22KW Electric Car Recharge Stations provide high - power charging with up to 22 kW/32 A three - phase capacity. Its adjustable current and delayed charging function (Via APP) let you avoid peak hours, saving costs and ensuring quick, efficient charging at home.
Wide Compatibility: This charger is suitable for all electric and plug - in hybrid vehicles with 7 - pin Type 2 or CCS - 2 sockets that meet the IEC 62196 standard. It offers seamless charging for various vehicle models in the UK and Europe (And it has Type 1 and GBT plug as an option).

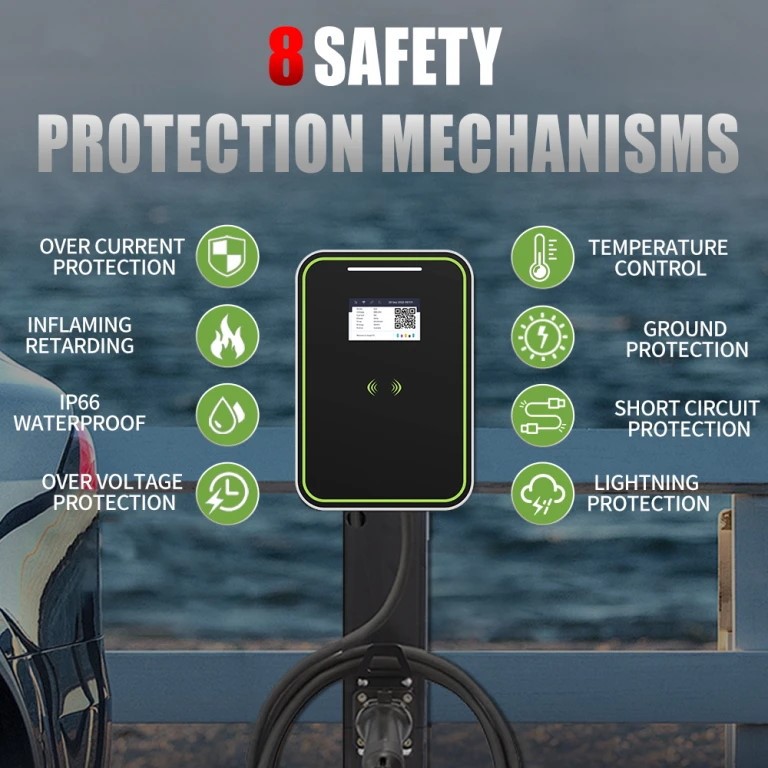

Multiple Safety Protection: Made of high - quality materials. With CE, RoHS, and UKCA certifications, it provides protection against water, power leakages, lightning, overheating, and overcharging for safe indoor and outdoor use.
User - friendly Design: The 5 - meter charging cable meets daily needs, and the included cable bracket helps keep it organized. It can be wall - mounted on walls or pillars (not included) and is easy to install by a professional for convenient home charging (Other cable lnegth can be customized).
Reliable Customer Service: We offer a 12months quality guarantee and lifetime technical support. Contact us via multiple channels if you have any problems, and we will solve them within 24 hours.
What should I look for in a home charger?
When it comes to selecting a home charger for your electric vehicle, the array of options can seem overwhelming. However, by focusing on three key attributes, you can make an informed decision that meets your needs perfectly.
Vehicle and Space Suitability
The first and foremost factor to consider is compatibility. You need a charger that meshes seamlessly with your electric car model and the available space at your home. Take the Type 2 7KW 11KW 22KW Electric Car Recharge Stations as an example. It stands out with its provision of three distinct cable varieties (Type 2, Type 1, GBT), allowing it to adapt to different vehicle requirements. Moreover, its sleek and compact design makes it an ideal fit even in areas with limited space. With power output choices spanning from 7.4kW to 22kW, you have the flexibility to pick the option that aligns best with your charging speed preferences and electrical setup.
Ease of Use and Connectivity
Convenience is another crucial aspect to prioritize. Opt for a charger that is equipped with smart connectivity features, transforming the charging process into a straightforward and user - friendly experience. You should be able to effortlessly schedule charging sessions, enabling you to take advantage of off - peak electricity rates. Additionally, having the ability to monitor your energy consumption in real - time gives you better control over your usage and costs. The ability to manage the charger remotely, whether you're at home, at work, or on the go, adds an extra layer of convenience. Senku Electric Car Recharge Stations, ensuring that your vehicle is fully charged and ready for your next journey whenever you need it.
Dependability and Durability
Reliability is non - negotiable when it comes to a home charger. You need a charger that can perform consistently regardless of the weather or environmental conditions. Look for chargers that have robust protection against water and dust. Chargers with IP65 and IK08 ratings are designed to withstand the elements, making them suitable for both indoor and outdoor installation. This versatility allows you to place the Type 2 7KW 11KW 22KW electric car recharge station wherever it's most convenient for you. Additionally, a minimum 12 months warranty is a strong indicator of the manufacturer's confidence in the product's quality and durability, providing you with peace of mind and protection against potential defects.
Optional Function of the Electric Car Recharge Stations
1
Swipe RFID card to start or stop charging, only has RFID card user can active the charger.
2
Enable the charger can be controlled by Phone APP;
Remote start / Stop charging and know real-time charging data.
3
Dynamically manage the power situation at home, automatically adjust the output power of the charging station to prevent tripping.
4
Using the electricity generated by solar panels for car charging.
Easy set 100% solar energy or a combination of solar and grid energy.
5
Customize cable lengths according to user needs, such as 5M, 7M, 10M, or other lengths.
6
Print buyer logo on the charger or production according to buyer design pattern.
7
Print buyer logo on the charger carton or or production according to buyer design.
8
Design, development and production according to customer requests.
