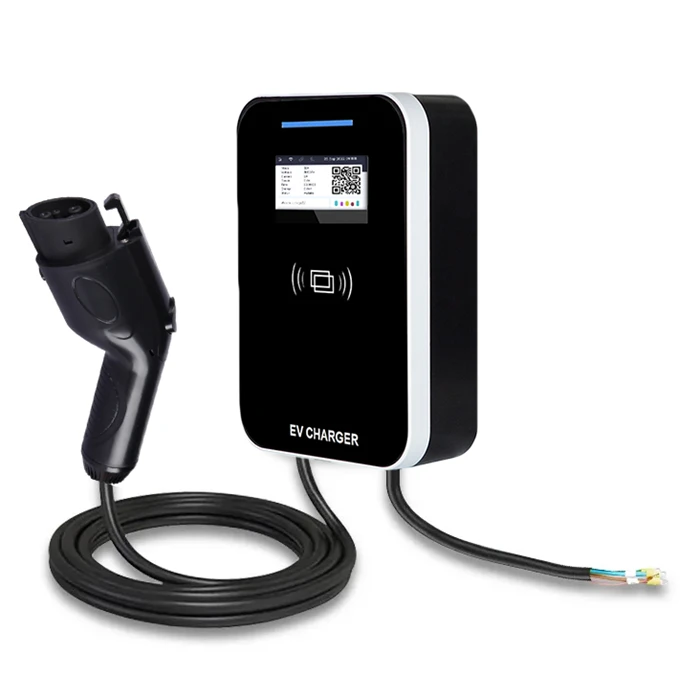

Name: 7KW Type 1 Electric Car Wall Charger - 7KW Type 1 Electric Car Wall Charger Manufacturers Suppliers Factory - Senku Machinery
Brand: SENKU
SKU: 248749566

Description

Technical Parameters

Technical Information

Maximum Charging Output: 7.4 kW (Single-phase)
Input Voltage Range: 110V/230V AC ±10%
Input Frequency: 50/60 Hz
Max Current Output: 32 Amps 7.4KW
Adjustable Current Levels: Between 6A and 32A
Connector Type: Type 1 (SAE J1772 standard)
Unit Size: 238mm (L) x 95 (W) mm x 348mm (H)
Cable length: 5 meters
Cable Specification: Type 1 cable, 5x6 mm²
Operating Range: From -25°C to +50°C
Durability Rating: IP55 protection, IK08 impact resistance
Certifications: Compliant with LVD 2014/35/EU, EMCD 2014/30/EU, IEC 61851-1/22, and SAE J1772
Safety Functions: AC leakage (30 mA) and DC leakage (6 mA) detection
RCD Requirements: External RCCB (Type A or B, based on local standards)

Product Higlights

EV charging Solution

Compact Home EV Charging Station: 3.7kW – 7.4kW Capacity

Engineered exclusively for residential use, this charging station features a lightweight yet durable ABS+PC housing, combining sleek design with robust performance. Its versatile mounting options allow for easy installation on both walls and poles, adapting to any home garage or driveway setup.

User-Friendly Plug-and-Charge Experience

Designed for seamless home charging, the station offers Plug-and-Charge functionality, automatically initiating and stopping charging when connected or disconnected. A built-in LED status indicator and 4.3-inch screen provide real-time updates on charging status, energy usage, and session data, ensuring full visibility at a glance.

Smart Remote Management

Stay connected to your charging sessions via the dedicated app, enabling remote monitoring of charge data and control charging. You can also authorize others to use the charging station through your account and easily manage users.Whether you're adjusting settings from another room or checking progress on the go, the app keeps you informed and in control.

Exceptional Value and Quality

This charger delivers a compelling balance of affordability and performance, offering premium features at a competitive price point.

Competitive advantage

The company conducted a competitive advantage analysis to identify its strengths and weaknesses compared to its rivals.

Interactive Display

4.3-inch screen and LED indicators for clear charging status updates.

Lightweight & Durable Construction

Ideal for home environments, with a sturdy build that withstands daily use.

Optional Enhanced Functions

Add RFID card access for authorized charging and WiFi/Bluetooth connectivity for app-controlled management.

Advanced Safety Systems

Includes 30mA AC fault current protection (6mA DC fault protection optional) to safeguard against electrical hazards.

Customizable Cable Options

5M fixed charging cable as standard, with customizable meter cable lengths available.

product key technologies-Power Manage

01.

CT Kit: Elevate Charging with Intelligent Energy Flow

Upgrade your charger with the CT Kit to unlock advanced dynamic charging management. This solution continuously monitors your home's energy consumption and automatically adjusts EV charging power to prevent grid overloads and unexpected utility costs. By balancing energy use, it ensures seamless integration with your home's electrical system, enhancing safety and efficiency.

02.

CT Kit: Harness Solar Energy for Sustainable Charging

Pair your charger with the CT Kit to unlock solar-powered EV charging, reducing carbon footprints and reliance on grid electricity. Choose between two modes: full solar charging or a hybrid blend of solar and mains power, maximizing efficiency based on renewable energy generation.
