Basic Introduce

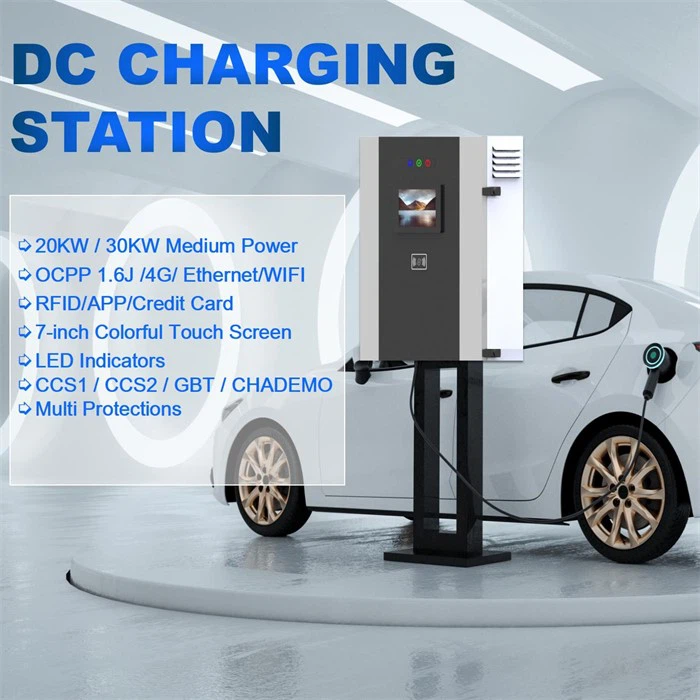

The future of transportation is electric, with advance and high DC charging technology and experience, a excellent serviceability 30KW electric vehicle charger was borned. This 30KW Electric Vehicle Charger is an economical solution for a range of industries seeking a DC fast charging, low invest cost and easy installation.
| Specification | Model | Data |
| AC Nominal Input | Phases/ Lines | 3-phase; 3P+N+PE |
| Input Voltage | 400V AC±15% | |
| Frequency | 50Hz-60Hz | |
| DC Nominal Output | DC Voltage Accuracy | <±0.5 |
| Output Voltage/current | 20KW @ 67A ; 50V-1000V DC | |
| 30KW @ 100A ; 50V-1000V DC | ||
| 40KW @ 134A ; 50V-1000V DC | ||
| Output Efficiency | >96% (Rated input and output) | |
| Security Protection | Multi le Protection | The Electric Vehicle Charger with protection functions: OverCurrent Protection, Over/ Under Volatge Protection, Short Circuit Protection, Reverse Polarity Protection, OverTemperature Protection, Protect, Earth Connect Monitoring, Full automatic stop |
| Certificate Compliance | CE Certification | |
| EN IEC 61851-1:2019, EN IEC 61851-21-2:2021 EN 61851-23:2014/AC:2016-06, EN 61851-24:2014/AC:2015 EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021 EN 61000-3-12:2011, EN 61000-4-7:2002/A1:2009 |
||
| Warranty | 12 months | |
| Dimension | Dimension & Weight | 540*185*665mm 20KW 700*630*280mm 30KW/40KW |
Product Features
- OCPP functions support
- Small enough to fit into existing sites, wallbox or ground installation all support.
- 7inch touch screen layout with clear icon displays for easy operation.
- Durable and robust metal framework: IK 10.
- Surge protection from lightning strikes with integrated SPD.
Application
The 30KW Electric Vehicle Charger is designed to meet the diverse needs of various sectors, including retail store, hospital packing lots, workplaces and fleet management..... Its versatile application makes it an ideal choice for businesses looking to provide convenient and efficient charging solutions for their customers, employees, and vehicles.
Understanding Electric Car Charging
Two main families to charge a Electric Vehicle (EV) are dominant on the market, AC chargers, for Alternative Current (AC) charging and DC charging station for Direct Current charging.
AC chargers also known as Mode 2 (level 1) and Mode 3 (level 2) or are the most dominant charging family present on the market.
DC chargers, also known as level 3 or direct-current fast charging (DCFC).
