Basic Information
| Input Voltage | 1-phase, 90-265V ac, rated 220V, 45-65Hz | 3-phase, 260-475Vac,rated 380V,45-65Hz | |||||
| Output Current |
7KW 0-20A |
15KW 0-37.5A |
20KW 0-50A |
30KW 0-75A |
40KW 0-100A |
60KW 0-200A |
|
| Output Voltage | 200-750V DC (1000V DC optional) | ||||||
| Security Protection |
For GBT charging station: GB/T 18487, GB/T 20234,GB/T 27930 For CCS charging station: EN61851, EN62196, ISO15118, DIN70121 For Chademo charging station: CHAdeMO |
||||||
| others | OCPP function optional | ||||||
| Certification | CE | ||||||
Prodcut Features
This electric car EV charger 15kW 20kW 30kW 60kW with a small size 670 × 220 × 440mm, suitable for any location that requires charging.
This DC EV charger with a 4.3 inch touch screen, and the screen will prompt the operation steps and show real-time charging data, intuitive and simple, beautiful and generous. The deafult language is English, other language can be customized.
The charger with two metal handle at the top side and four wheels at the bottom, easy to move.
High performance charging module, every charging is under monitoring. This Electric Car EV Charger 15KW 20KW 30KW 60KW has OverCurrent Protection, Over/ Under Volatge Protection, Short Circuit Protection, OverTemperature Protection, Earth Connect Monitoring, Full automatic stop etc...
The output charging connector can be choosen GBT, CCS1, CCS2 and CHAdeMO. The input cable and output cable length also can be customized, easy to reach long disctance car parking position;
This electric car EV charger 15kW 20kW 30kW 60kW suitable for home users, it can reach any position of your yard with correct cable length;
And it also can use for business, for example, s a flexible charger for the fleet.
Operation Steps

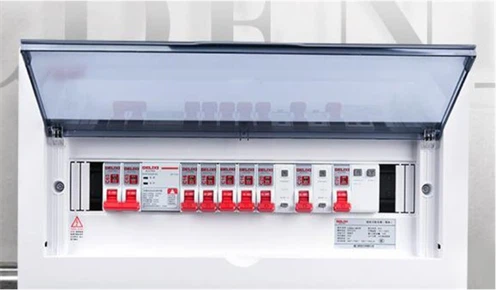

Step 1: Switch input line ON

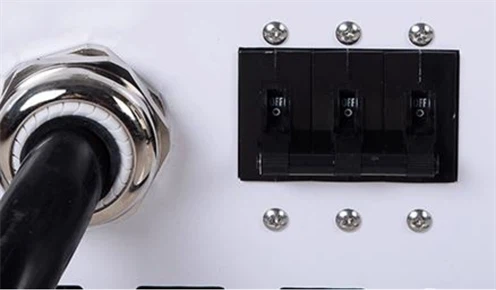

Step 2: Swith the charger ON

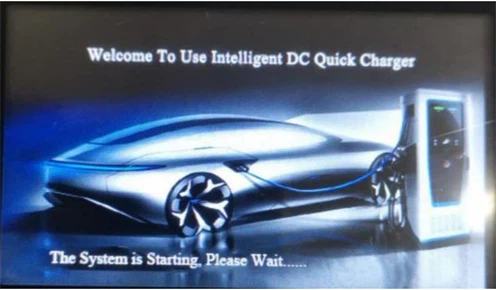

Step 3: Welcome interface
Step 4: Connect to car
Step 5: Connecting confirmation interface
Step 6: Click button to start charging
Step 7: Charging interface
Step 8: Disconnect the charger from car
Charging Method
The default charging station is plug and play charging, which means that when the charging station is connected to the car, it automatically starts charging and automatically shuts off when fully charged;
Customers can choose the card swiping charging function according to their actual usage needs;
The OCPP function is customized for customers with commercial purposes, which can achieve remote management and charging function.
Charging Time reference
For Audi e-tron 50 (2020)
Battery size 71 kWh
3.5kW AC Charging time 19h
7kW AC Charging time 10h
22kW AC Charging time 7h
30KW DC charging time 2.5h
For BMW i3 (2018)
Battery size 42.2 kWh
3.5kW AC Charging time 10h
7kW AC Charging time 6h
22kW AC Charging time 4h
30KW DC charging time 1.5h
For Citroën ë-C4 (2021)
Battery size 50 kWh
3.5kW AC Charging time 14h
7kW AC Charging time 7h
22kW AC Charging time 7h
30KW DC charging time 2h
For VW ID.5 (2022)
Battery size 82 kWh
3.5kW AC Charging time 22h
7kW AC Charging time 12h
22kW AC Charging time 8h
30KW DC charging time 3h
Remark: 1. The above time calculate charge from 20% - 80%, as charging tends to slow outside this range to protect the battery.
2. The above data is based on Senku charging station testing. The brand of charging station, testing environment, and temperature will all have varying degrees of impact on the test results;
