Basic Information
This 11KW OCPP1.6 Commercial EV Charger is main design for public commercial use; Nice clear appearance and 4.3inch touch screen for easy operate; EU MID certificated meter ensure the high level cost calculate And and thanks to OCPP protocol, the charger can be remote control and monitored in real time;
11KW Commercial EV Charger Product Features
• 7KW 11KW 22KW configurable; Single phase & three phase configurable
• With 4.3 inch touch screen, 3 color LED show charger state
• OCPP 1.6 support; WIFI, 4G and Ethernet option
• Monitoring by ocpp server / APP, Smart charging through OCPP 1.6 Jason
• EU MID Approved energy meter
• Wall Mount or Pedestal Mount supported

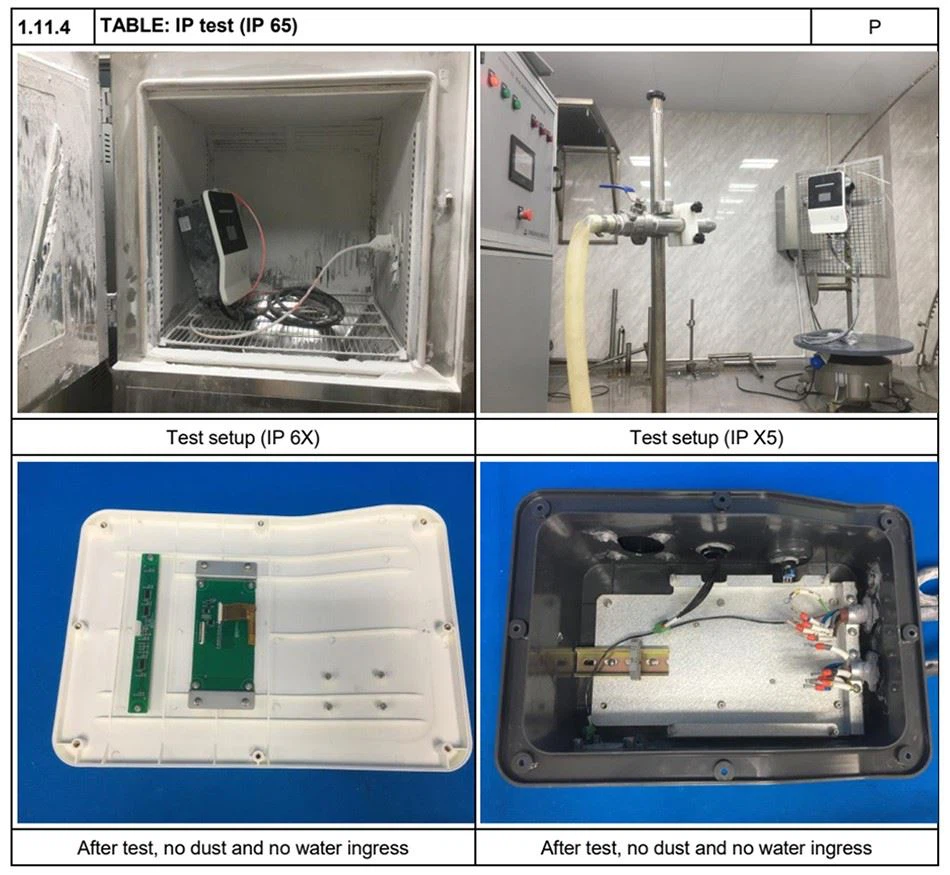

• Water-proof & dust-proof Level IP65, streamline body, Polycarbonate, UV resistant, flame retardant, operated indoors and outdoors.
Application
The 7KW to 22KW IEC 6196 type 2 electric car charger can install in Public/ Private Parking Lots, Residential, Hotels, Retail Stores...etc;
What is the OCPP1.6J?
The 11KW Commercial EV Charger has OCPP fuction,this function makes EV Charger commercially available.
OCPP (Open Charge Point Protocol) is an open charging protocol used for communication between charging stations and central systems. OCPP 1.6 is the latest version, released in 2015.
Main Features of the OCPP 1.6 Protocol
Communication Using WebSockets:
OCPP 1.6 uses WebSockets for communication, a lightweight communication protocol that can improve communication efficiency.
Data Formatting Using JSON:
OCPP 1.6 uses JSON for data formatting, which is an easy-to-read and parse data format.
Support for Smart Charging:
OCPP 1.6 supports smart charging, which can adjust charging based on grid conditions, user needs, and other factors.
Enhanced Diagnostic Capabilities:
OCPP 1.6 has enhanced diagnostic capabilities, which can help operators better maintain charging stations.
Advantages of the OCPP 1.6 Protocol
Openness:
The OCPP 1.6 protocol is open and free for anyone to use.
Flexibility:
The OCPP 1.6 protocol can be customized to meet different needs.
Scalability:
The OCPP 1.6 protocol can be extended to support new features.
Applications of the OCPP 1.6 Protocol
The OCPP 1.6 protocol has been widely applied in charging stations around the world.
Hot Tags: 11kw ocpp1.6 commercial ev charger, 11kw ocpp1.6 commercial ev charger suppliers, manufacturers, factory, j 1772 connector, dc ev charger 30kw, ev charging plug, fast charging ev station, public level 2 charging stations, car plug in stations
Technical Specification
|
Electrical Ratings |
Rated Input Voltage |
1P,230 VAC ± 15%; |
3P;380 VAC ± 15%; |
3P,380 VAC ± 15%; |
|
Frequency |
50Hz - 60Hz |
|||
|
Maximum Power |
7kW |
11kW |
22KW |
|
|
Rated Current |
32A |
16A |
32A |
|
|
HMI |
Charging Method |
Mode 3 |
||
|
Case Material |
PA66 |
|||
|
Start/ Stop method option |
①Swipe RFID card to charge; ②App remote start / stop charging |
|||
|
Emergency stop button |
YES |
|||
|
LED / Screen |
4.3 inch LCD Touch screen +LED Light |
|||
|
Meter |
MID Certificated Energy Meter |
|||
|
Charging interface |
①Type2 socket (Type2 socket outlet, no charging cable) |
|||
|
Communicate |
Ocpp Version |
OCPP 1.6 Protocol (Easy integrated into third party ocpp server) |
||
|
Internet |
WiFi / Ethernet/ 4G option one (Commercial Version only) |
|||
|
Electrical Protection |
Protections |
Over/under voltage protection, Overload protection, |
||
|
Environmental Ratings |
Application |
Indoors or Outdoors. |
||
|
IP level |
IP65/ IK08 |
|||
|
Working Tem |
Operating temp:-25~55℃ ; Storage temp:-40~70℃; |
|||
|
Humidity/ Attitude |
5% to 95% without condensation; <2000 Metres |
|||
|
Charger Dimensions |
300(W) x 150(D) x 410(H) mm |
|||
|
Installation |
Wall-mounting/standing pole |
|||
|
Weight (KG) |
8kgs |
|||
|
Compliance |
Electrical |
IEC 61851-1:2017, IEC 62196-1, IEC62196-2; CE certificate |
||
|
Option Parts |
Socket Type |
Type2 Shutter socket |
||
|
Charger standard |
SAE J1772 Type1 plug for option |
|||
