Brief Introduction

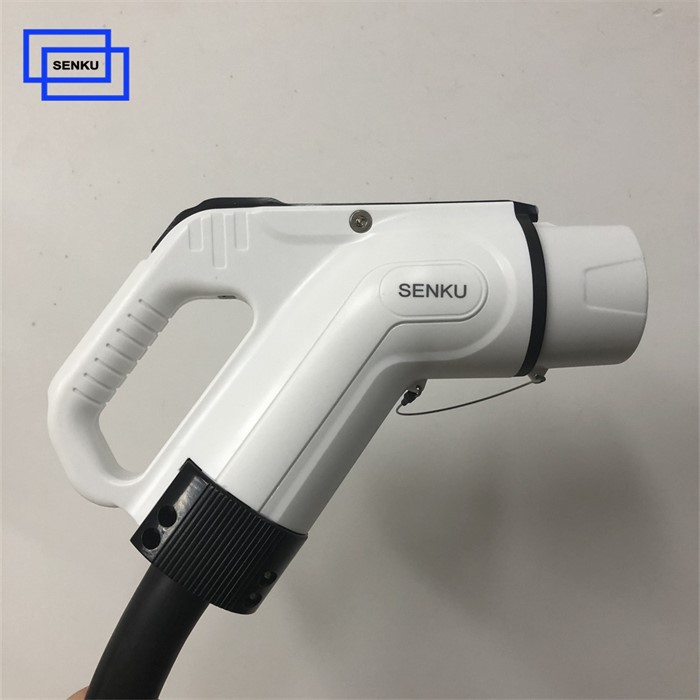

The 250A GB/T Plug EV Fast Domestic Outlets are available in 20A to 250A.
It's can be wide use in small movable kilowatt DC EV charger to High kilowatt Ultra fast charging station.
Product Features
- The 250A GB/T Plug integrated two temperature sensors on DC pins for monitoring the temperature change.
- This GB/T Electric car plug designed for 10,000+ charging cycles.
- Integrated E-lock inside, can lock on the vehicle side charging inlet to prevent accident drop.
- Excellent protection performance, up to IP55 dust and water proof grade.
Definition of GB/T Plug
| DC+ | DC Power Supply+ | DC- | DC Power Supply- |
| CC1 | Connect Confirmation | CC2 | Connect Confirmation |
| S+ | CAN-H | S- | CAN-L |
| A+ | 12V+ | A- | 12V- |
| PE | Groudning |
Application:
The 250A GB/T Plug (GB/T also called Guobiao or domestic) with open cable end are design for electric vehicle (EV) DC quick charging. Usually, it is install on the GB/T charging stations as outlet plug.Senku can provide a complete set of charging products, including DC charging guns, charging cables. The product quality is guaranteed. You can purchase with confidence.
FAQ
Q1: Why there is 20A /32A DC GBT electric car charging plugs?
A: The low current capacity GBT Electric car plug is mainly designed for the Mobile / portable DC charging stations or emergency recharge stations. Usually these EV charger prefer a light weight, so lower weight charging cable is mandatory.
The 20A / 32A / 40A GBT EV fast charger plug dimension also smaller then the plugs of 80A to 250A.
Q2: The charging design is 500V max, Can i use this 750V DC GB/T plug?
A: Yes no problem. The 750V is max voltage of the plug, it is no problem to use with a 500V EV charging system.
Q3: Do you have GBT EV charger?

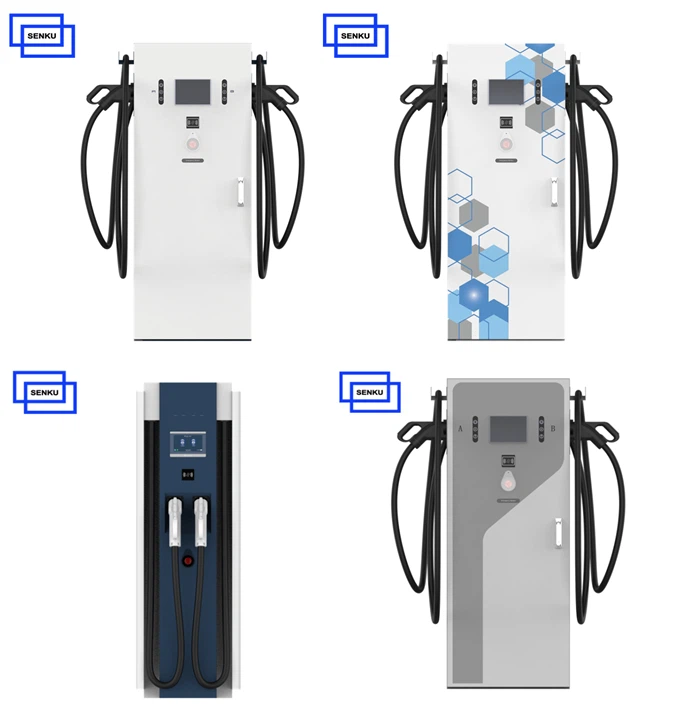

A: Yes, we exactly have GB/T EV chargers, form small movable 30KW to Ultra fast charging 350KW. Please contact us to know more.
