Basic Information
|
Product Name |
400A 350A 300A 250A Combo CCS Type 2 Electric Car Charging Plugs |
|
Rated Current |
80A 125A 150A 200A 250A 300A 350A 375A 400A optional |
|
Rated Voltage |
1000V DC |
|
Terminal |
Copper alloy,silver plating |
|
Flame retardant grade |
UL94 V-0 |
|
Coupled Force |
45N＜F＜100N |
|
Operating Temperature |
-30℃-﹢50℃ |
Product Features
The IEC-3-IVc Series Combo CCS Type 2 electric car charging plugs are available in 60A to 400A.
It's high quality CCS Type 2 electric car charging plugs for Europe CCS Type 2 DC fast charging installations are TUV certified and compliant with IEC 62196-3 (EN 62196-3)
CCS2 electric car charging plugs integrated temperature sensors (2pcs PT1000) for monitoring the temperature change at the power contacts (between DC+ and DC- terminals).
Universally compatible, high-quality CCS2 EV plugs designed for 10,000+ charging cycles.
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001 standard.
Application
SENKU IEC-3-IVc Series 400A 350A 300A 250A Combo CCS Type 2 electric car charging plugs with open cable end are design for electric vehicle (EV) DC quick charging. It is a ideal solution for various Kilowatt electric car CCS DC chargers, which Up to 200KW / hour charging speed.
Delivery Tests for Electric Car Charging Plugs
Each 400A 350A 300A 250A Combo CCS Type 2 electric car charging plugs will do delivery testing after production to ensure that the product quality and other specifications meet the requirements: the factory's quality inspection department needs to test the electrical performance, temperature rise performance, pulling force, appearance, cable length and specifications of the product before shipment. This process can improve product reliability and safety through comprehensive functional testing, safety testing, and reliability verification.

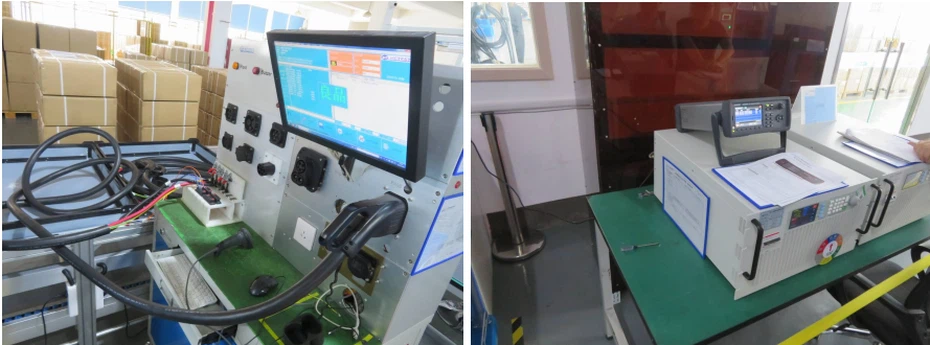

| Electrical Performance Test |
Temperature Rise Test |

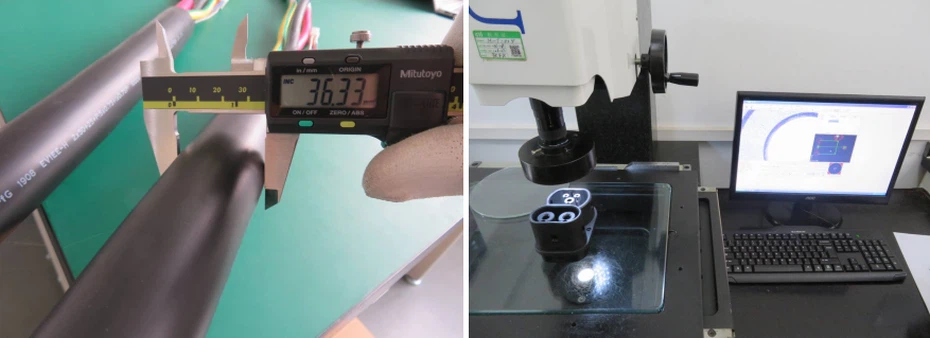

| Cable Diameter inspection | Plug Dimension inspection |
| Cable length Inspection | Stripping Cable length Inspection |
| Printing Words Inspection | Smell Inspection |
Expand knowledge
What is Combo CCS ?
The Combined Charging System (CCS) is a standard for charging electric vehicles. It uses the Combo 1 and Combo 2 connectors to provide power at up to 500 kilowatts. These two connectors are extensions of the IEC 62196 Type 1 and Type 2 connectors, with two additional direct current (DC) contacts to allow high-power DC fast charging.
In the past, usually the electric vehicles only have a AC charging inlet, with the fast develop of e-mobility and in order to reduce people wait time, DC charging came into being.
And Combined Charging Connectors integrated AC charging and DC charging into one.
The vehicle coupler is composed of the vehicle connector, which is mounted at the end of a flexible cable, and the vehicle inlet, the counterpart of the connector, which is located within the vehicle.

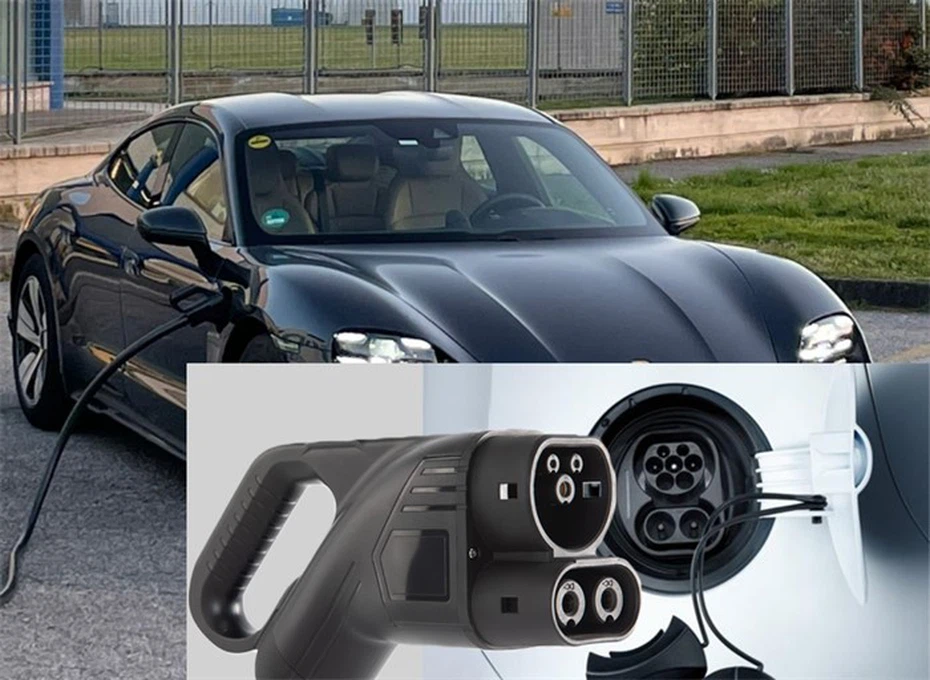

The CCS2 inlet socket is extending the inlet with two additional DC contacts below the existing AC and it compatible with both Type 2 vehicle connectors and additional CCS2 vehicle connectors (EV charging plug).
The CCS electric car charging plugs contain five contact pins: two small contacts and three large contacts. The top two small contacts for signals, the middle pin is used for grounding, and the bottom two pins are used for power supply.
Proximity pilot (PP): pre-insertion signalling
Control pilot (CP): post-insertion signalling
Protective earth (PE): full-current protective earthing
Power supply positive (DC+)
Power supply negative (DC-)
Company Basic Information
Powerful Solutions For Business Growth
Senku is a professional manufacturer of electric vehicle charging products. Our products include charging connectors, Mode 2 charging, AC charging piles, and DC charging piles. We are also willing to provide more services to our customers - supporting them in building charging pile factories locally and helping them achieve localized production to respond more quickly to local customer needs; We look forward to hearing from you.

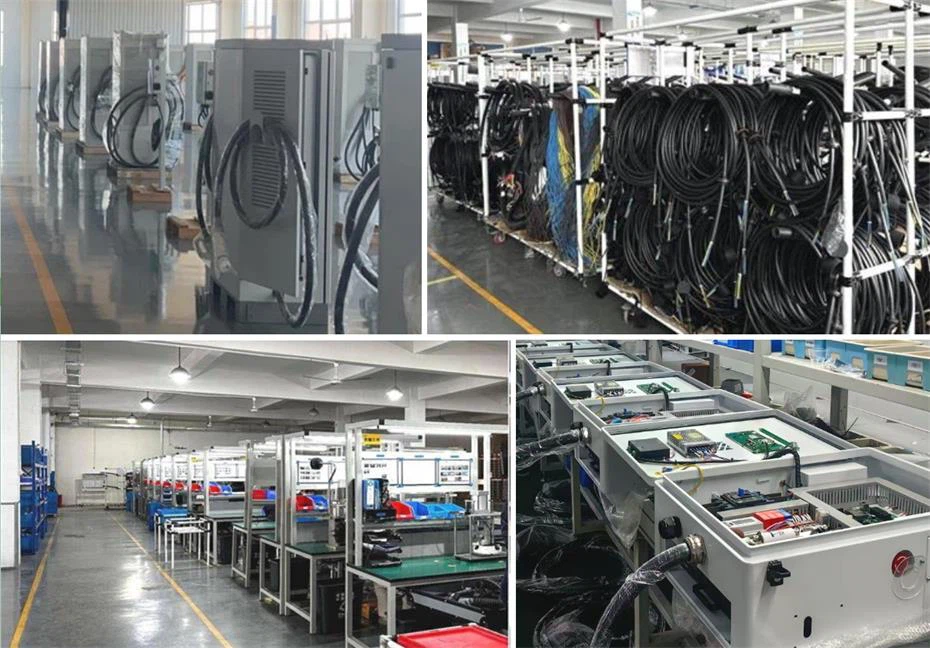

Our factory & quipment
