Product Features

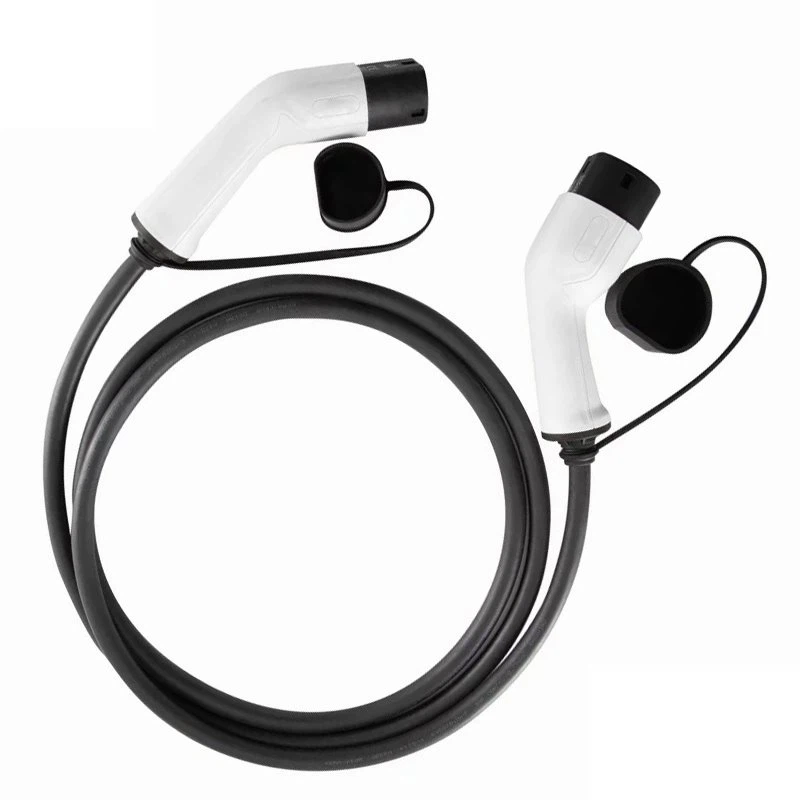

16A Type 2 To Type 2 EV Charging Cable
• Design accoring to IEC 62196 standard;
• Angled horizontal bending design, in line with the habit of manual force which allows for convenient plugging & unplugging
• Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001 standard.
• IP55 High IP level, stable work in all kinds of harsh environments.
• The ergonomic design handle is made of thermoplastic engineering plastic and can stand 1 meter height drop & 2 ton vehicle rolling pressure.
• White and Black colors for option, brand customized service support.
Understanding Electric Car Charging
Q1: What is mode3 charging?
Dedicated EVSE; The electric vehicle supply equipment (EVSE) is permanently connected to the AC supply network (250V 1-phase or 480V 3-phase) and incorporates control and safety functions.
The connection of Mode 3 Charging: Case B and Case C are shown below.
CASE C (Charging station with EV Connector Outlet)
The charging cable is fixed on the EVSE permanently. Not need extra charging cable from driver. Mode 3 Case C is for AC charging and Mode 4 Case C is for supplying DC through the cable to the EV.
CASE B (Charging station with socket Outlet)
Electric Vehicles (EV) are connected to the EVSE via a charging cable which fitted with two connectors, one of which plugs into the EV inlet socket, and the another of which plugs into the EVSE outlet socket.
This mode is belong to AC charging. The EVSE charging the electric vehicles (EV) through the on-board charger which inside the EV.
Driver need to use own ev charging cable (Type 2 to Type 2 / Type 1 ) to charge on a Case B connection EVSE.
